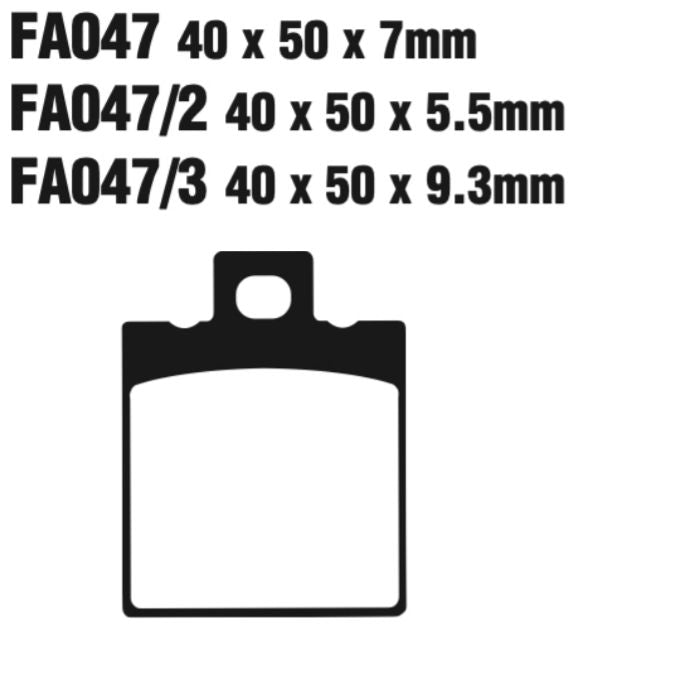

EBC Fa047Hh Double-H Sintered Disc Pad Set Front (8601104) For Apr/Ben/Bim/Cag/Duc/Gil/Lav/Guzz

Part No. 8601104

Fast street and superbike pad
TUV and ECE R 90 approved
Ultra high brake effect and lifetime
Perfect braking wet or dry

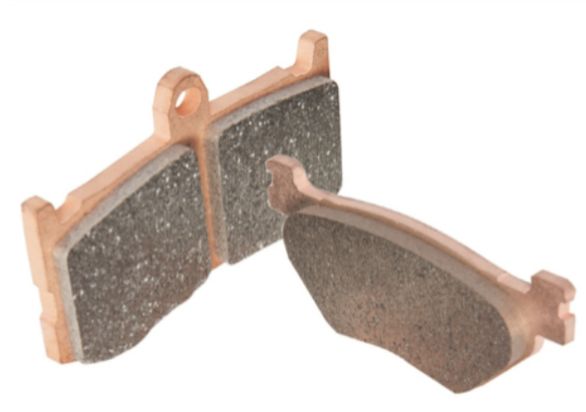

The EBC flagship sintered streetsport pad that delivers highest braking power, stability and long life. Ultra high HH rated friction TUV tested and ECE R 90 brake safety approved, there are few pads on the market to meet or beat the performance of Double-H pads. Made in the EBC state-of-the-art sintering plant in Ohio, USA, these pads stop fast - wet or dry - and last for thousands of miles.

Most manufacturers build bikes using sintered metal pads and these are direct replacements for that technology with several differences. First the refined compounds researched and used exclusively EBC are second to none in terms of quality of materials and workmanship. Secondly almost all EBC Double-H sintered pads use EBC design perforated stainless steel heat and noise shields on the reverse side, keeping brakes cooler by reducing heat transfer into the bikes hydraulics and dampening noise.
For race use we recommend the EBC Brakes EPFA or GPFAX sintered pad ranges which are an even higher spec compound with higher brake effect and heat cycling ability.

To Fit:
APRILIA
AF1 125 1988-1991
RS 125 (5 BOLT REAR DISC/2T) 1992-2005
RS 250 1995-2002
RS 50 (6 BOLT DISC FIXING FRONT & REAR) 1993-1998
RED ROSE 125 (CAST WHEEL) 1987
TUONO 125 2003-2004

BENELLI
125 T 1983
250 C/TS, 250/4 1976-
304 1983
354 -1982
354 SPORT 2 1983
500 4 1976-
654 SPORT 1983
666 SCOOTER BORN IN HELL 125CC 1998-1999
UNO C 150/250 (SINGLE CYL) 2013

BIMOTA
ALL MODELS (SINGLE PIN FIXING) 1989-
DB10 MOTARD (1078CC) 2012-2014
DB5R/S (1078CC) 2008-2009
DB6 (1078CC) 2008-2009
DB6 (1100CC) 2012-2013
DB6/R (1078CC) 2008-2009
DB7 (1099CC) 2009-2014
DB8 SP (1198CC) 2010-2013
LATER MODELS (TWIN PIN FIXING) 1998-
SB8K GOBERT (SUZUKI ENGINE) (996CC) 2006
SB8K SANTAMONICA (SUZUKI ENGINE) (996CC)
TESI-3D (1078CC) 2009-2013
TESI 2D (DUCATI) 992CC 2004-2006

CAGIVA
BLUES 125 1992-1995
MITO 125/500 Multiple Models and Years
N1 125 1997
PLANET 125 Multiple Models and Years
RAPTOR 125 2003-2010
RIVER 600 1995-1999
SST 250/350 1980-1982
SX 250 1982
W4 50 1991-1995

DUCATI
MONSTER/S2R/S4/S4R/S4RS Multiple Models and Years
500 GTL 1975
500 GTV PANTAH 1977
500 PANTAH 1979
500 SPORT DESMO 1977
600 PANTAH 1981
SUPERSPORT Multiple Models and Years
620 MULTISTRADA (TWIN DISC/SINGLE PIN PAD FIXING) 2006
620 MULTISTRADA DARK (SINGLE DISC/TWIN PIN PAD FIXING) 2006
620 SPORT 2003
748 BIPOSTO 1995-2002
748 R (2 PAD CALIPER) 2000-2002
748 S (BIPOSTO) 2000-2002
748 S (MONOPOSTO) 2000-2002
748 SP/MONOPOSTO 1999-2002
748 SP 1995-1998
748 SPS 1998-1999
748 TESTA BASSA (MONO/BIPOSTO) 2001
750 PASO 1987-1990
800 SPORT 2003
851 SUPERBIKE BIPOSTO 1989-1992
888 SP4/SP5 1992-1993
888 SUPERBIKE STRADA 1994-1995
907 IE 1990-1993
916 (BIPOSTO) 1994-1996
916 SP 1994-1996
916 SPS (996CC) 1997-1998
916 SENNA 1994-1998
996 (996CC) (MONOPOSTO/BIPOSTO) 1999-2001
996 R 2001
996 S 2001
996 SPS (996CC) 1999
998 (998CC) (2 PAD CALIPER) (MONOPOSTO/BIPOSTO) 2002-2003
998 MATRIX (998CC) 2004
998 R (998CC) 2002
998 S (998CC) (4 PAD CALIPER) 2002-2004
998 S BAYLISS/BOSTROM 2002

GILERA
GFR 125 1994
NORDWEST 600 1990-
RC 250 RALLY 1987-1988
SATURNO 350 BIALBERO 1990-
XRT 350 1990-
XRT 600 1988-

HONDA
CBR 900 EVOLUTION BLADE 1999
HYOSUNG
EXCEED 125 (MS1-125/150) 2002-2004

LAVERDA
650 ALL MODELS 1994-1995
668 ALL MODELS 1996-1998
750 ALL MODELS 1998-2001
ALPINO 500 1976
CR 50 ATLAS 1987-
GS 125 LESMO 1986-1989
LZ 125 SPORT BREMBO CALIPER 1980-1982
MONTJUIC 1976

MOTO GUZZI
1000 DAYTONA 1000 1992-1995
1000 DAYTONA 1000 RS 1997-1998
1000 V10 CENTAURO GT 1997-1999
1000 V10 CENTAURO SPORT 1997-1999
1100 SPORT Multiple Models and Years
1100 V11 Multiple Models and Years
350 NTX 350 1987-1990
350 NEVADA 1992-1997
350 NEVADA CLUB 1998-1999
350 V 35 Multiple Models and Years
500 V 50 Multiple Models and Years
650 65 GT 1988-1989
650 NTX 650 1987-1990
650 V 65 C CUSTOM (10 SPOKE CAST WHEEL) 1983-1986
650 V 65 FLORIDA (SPOKE & CAST WHEEL MODELS) 1985-1992
750 NEVADA Multiple Models and Years
750 SP (10 SPOKE CAST WHEELS) 1990-1992
750 STRADA/T ROADSTER 1993-1995
750 TARGA 1990-1993
750 V 75 (10 SPOKE CAST WHEELS/SOLID FLOATING DISCS) 1996-2001
750 V 75 (10 SPOKE CAST WHEELS/SOLID FRONT DISCS) 1992-1996

MOTO MORINI
350 COGUARO 1990-

MUZ
MASTIFF (17 INCH FRONT WHEEL/CAST WHEEL) 1999-2005
SKORPION Multiple Models and Years

NORTON
F1 (ROTARY) P55 MODEL 1990

T.M.
SMM 125/250/300/400/450/530 Multiple Models and Years

VOXAN
CHARADE RACING 2006

YAMAHA
SZR 660 1996-1997
TZR 125 R (4DL1/4DL2) BREMBO CALIPER 1991-1993
TZR 125 RR (4DL3) BREMBO CALIPER 1994-1995
